MGT Single Docking Station

DESCRIPTION

The MGT Single Docking Station is a compact and lightweight solution designed for efficient device management in various work environments. It offers automatic calibration and bump testing to ensure optimal performance and safety. The user-friendly design includes real-time status indicators and robust event log storage for easy monitoring and analysis.

Equipped with a gas ventilation system to safely remove residual gases, the station allows users to adjust settings via IR Link for flexibility in operation. It features a rechargeable battery for portability and external power for continuous use, providing both mobility and consistent performance.

Ideal for environments requiring reliable gas detection, the MGT Single Docking Station minimizes downtime while maximizing operational efficiency.

KEY FEATURE

• Zero and Span Calibration, Bump Test: Conducts zero and span calibration, as well as bump tests, to verify the proper functioning of MGT devices.

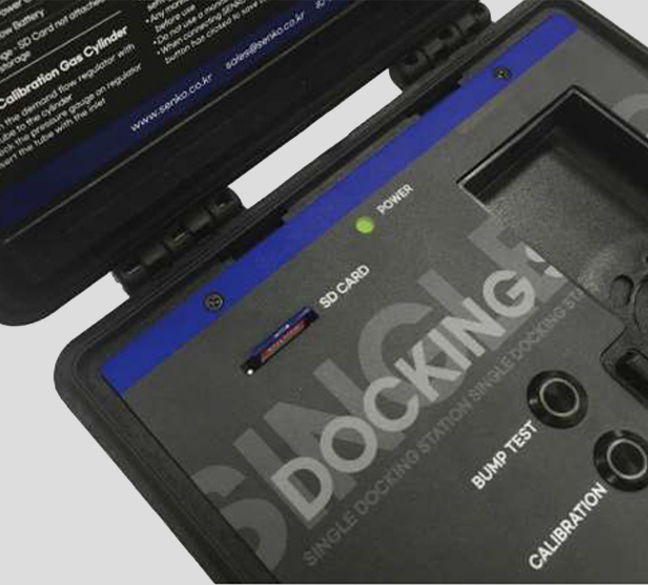

• Real-time Status Indicators: Power and unit LEDs provide clear visual feedback on operational status, helping users quickly assess device readiness.
• Gas Ventilation System: Effectively removes residual gas from the docking station, maintaining a safe and clean environment.
• Event Log Storage: Records calibration and bump test logs for easy access and detailed tracking of device performance.
• User Configuration: Allows users to adjust docking station settings via IR Link, offering flexibility for specific calibration needs.
• Rechargeable Battery or External Power: Features a rechargeable battery for portable use or can be powered continuously via an external power source.
• Compact and Lightweight: Designed for easy transport and use on worksites, providing a convenient and efficient solution for device management.

Model	MGT Single Docking Station
Dimensions	247(W) × 210(H) × 107(D) mm
Weight	2.85 kg (without gas cylinder)
Operating Temperature Range	41°F ~ 104°F (5°C ~ 40°C)
Warranty	Full 2 years, covering manufacturing defects and performance issues.
Battery Type	• Rechargeable Lithium-Ion • Provides long-lasting power for continuous operation
Battery Life	Supports up to 1,000 bump tests on a single charge.
LED Indicators	• 6 Blue LEDs for each connected unit • 3-color LED for power status (Red, Yellow, Green) • Switch Backlight LED (Yellow, Green) for enhanced operational visibility
Memory	SD-Card Class 10 (16GB standard) Ensures fast data access and reliable storage for test logs and configurations
Tests Performed	Bump test and calibration Verifies device performance and functionality to ensure safety
Information Stored	• Bump/Calibration Logs: Tracks and stores bump test and calibration data • Individual Monitor Event Logs: Records operational history for easy troubleshooting • Firmware and Unit Configurations: Ensures consistent settings and easy firmware updates
Gases Available	Supports calibration and bump testing for the following gases: Mixed gas, LEL (Lower Explosive Limit), CO (Carbon Monoxide), H₂S (Hydrogen Sulfide), O₂ (Oxygen)
Unit Compatibility	Compatible with SP-MGT models (N, P), ensuring seamless integration with various devices
Calibration Gas	Compatible with 58L and 116L calibration gas cylinders (using demand regulator)
Charging Adaptor	Input: 12V, 3A Ensures stable power supply for charging and operation of both the docking station and connected devices
Certifications	EMC(Electromagnetic Compatibility) RoHS2(Restriction of Hazardous Substances)

Model

MGT Single Docking Station

Dimensions

247(W) × 210(H) × 107(D) mm

Weight

2.85 kg (without gas cylinder)

Operating Temperature Range

41°F ~ 104°F (5°C ~ 40°C)

Warranty

Full 2 years, covering manufacturing defects and performance issues.

Battery Type

• Rechargeable Lithium-Ion
• Provides long-lasting power for continuous operation

Battery Life

Supports up to 1,000 bump tests on a single charge.

LED Indicators

• 6 Blue LEDs for each connected unit
• 3-color LED for power status (Red, Yellow, Green)
• Switch Backlight LED (Yellow, Green) for enhanced operational visibility

Memory

SD-Card Class 10 (16GB standard)
Ensures fast data access and reliable storage for test logs and configurations

Tests Performed

Bump test and calibration
Verifies device performance and functionality to ensure safety

Information Stored

• Bump/Calibration Logs: Tracks and stores bump test and calibration data
• Individual Monitor Event Logs: Records operational history for easy troubleshooting
• Firmware and Unit Configurations: Ensures consistent settings and easy firmware updates

Gases Available

Supports calibration and bump testing for the following gases:
Mixed gas, LEL (Lower Explosive Limit), CO (Carbon Monoxide), H₂S (Hydrogen Sulfide), O₂ (Oxygen)

Unit Compatibility

Compatible with SP-MGT models (N, P), ensuring seamless integration with various devices

Calibration Gas

Compatible with 58L and 116L calibration gas cylinders (using demand regulator)

Charging Adaptor

Input: 12V, 3A
Ensures stable power supply for charging and operation of both the docking station and connected devices

Certifications

EMC(Electromagnetic Compatibility)
RoHS2(Restriction of Hazardous Substances)
