iGas Detector CO₂

Portable CO₂ Detector

DESCRIPTION

The iGas Detector CO₂ is a portable device equipped with an infrared (IR) sensor, designed for real-time CO₂ concentration monitoring. This detector provides accurate readings and safety alerts by displaying CO₂ levels, tracking maximum and minimum concentrations, and triggering alarms with LED, sound, and vibration. The settings can be adjusted via the device or PC for flexibility in various applications.

KEY FEATURES

- IR Sensor Technology: Utilizes advanced infrared technology for accurate and reliable CO₂ measurement.
- Rechargeable Li-ion Battery: Long-lasting battery with a recharge cycle for added convenience.
- Extended Battery Life: Up to 14 days of continuous operation on a single full charge.
- Measurement in %vol and ppm: Provides flexible measurement options for both % volume and parts per million (ppm).
- Lightweight: Weighs only 135g, making it easy to carry and handle in various environments.
- Backlit Display: Clear and visible display, even in low-light conditions.
- Automatic Alarm Logging: Automatically logs alarm events for easy tracking and troubleshooting.
- International Wall Plug Kit: Exchangeable wall plug kit to accommodate various international standards.
- PC Software: Easy configuration and data management through dedicated PC software.
- Configurable Calibration and Bump Test: Customizable calibration settings and bump test functionality for accurate operation.
- Self-test Function: Periodic self-testing ensures the device is in proper working condition, providing early warnings if necessary.

DIMENSIONS

Weight: 135g
Battery Life: Up to 14 days
Measurement Units: %vol, ppm
Please refer to the product datasheet for detailed size and performance specifications.

Product Specifications

Model Name	iGas Detector CO₂
Sensor Type	NDIR (Non-Dispersive Infrared)
Measuring Method	Diffusion Type
Enclosure Material	Rubber Enclosure for enhanced durability

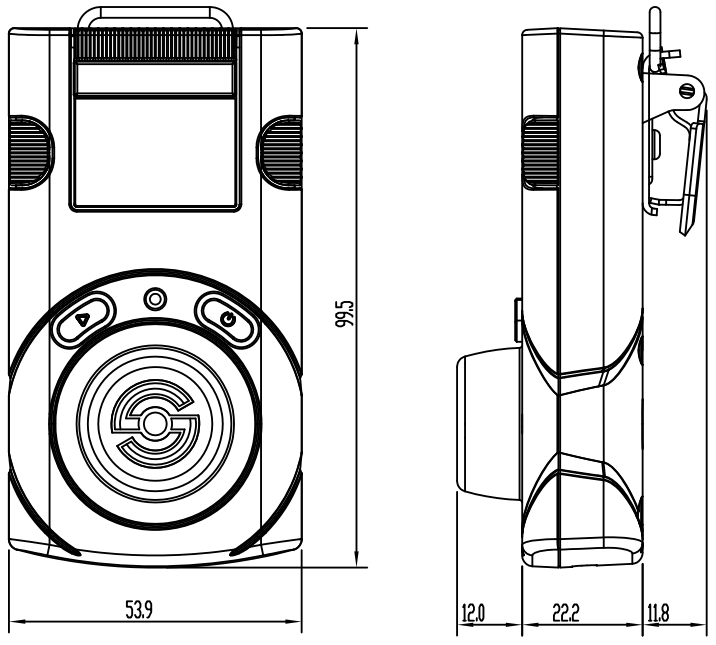

Dimensions	54(W) x 99.5(H) x 38.8(D) mm / 2.13(W) x 3.92(H) x 1.53(D) inch
Weight	135g / 4.76oz
Operating Temperature Range	-20°C to +50°C / -4°F to +122°F
Operating Humidity	5% to 95% RH (Non-condensing)
Operating Life	14 days (continuous operation)
Event Log	Stores the most recent 30 alarm events
Ingress Protection (IP Rating)	IP67 – Fully dustproof and waterproof (up to 1 meter for 30 minutes)
Alarms	Visual: Red flashing LEDs and LCD display Vibration: Alerts with vibration Audible: 90 dB buzzer at 10 cm
Display	Liquid Crystal Display (LCD) for easy readability
Battery	Type: Rechargeable Li-ion (Polymer) battery (500mAh) Charging Time: Max 100 minutes
Components	Calibration Cap, Manual, Calibration and Test Certificate, USB C-Type Charging Cable, Adaptor
Certifications	EMC, RoHS2, REACH, WEEE
