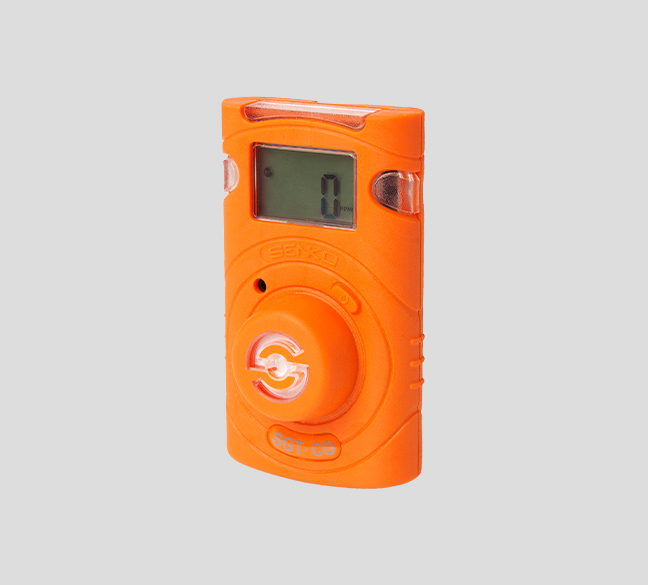

SP-SGT

Portable Single Gas Detector (Disposable Type)

DESCRIPTION

The SP-SGT is a compact, disposable single gas detector designed for continuous operation over a two-year period. It offers reliable detection for oxygen (O₂) or toxic gases without the need for sensor or battery replacement, providing seamless, long-term protection in hazardous environments.

KEY FEATURE

- Disposable Design: No need for battery or sensor replacement during the 2-year lifespan.
- Continuous Operation: Designed to operate continuously for two years, providing reliable protection.
- IP67 Rating: Excellent water and dustproof performance, ensuring durability in harsh conditions.
- Automatic Sensor Error Detection: Automatically detects sensor errors to ensure reliable performance.
- High-performance Alarms: Features both audible and vibrating alarms to provide immediate alerts in case of hazardous conditions.
- Event Logging: Automatically logs up to 30 events for easy tracking and troubleshooting.
- Easy Configuration and Data Management: Configuration and data management are facilitated via the IR Link, making it simple to use and maintain.
- Simple Calibration: Calibration is made easy using the docking station, ensuring consistent accuracy.
- Multi-docking Station: Allows for easy bump testing and calibration of multiple devices simultaneously, improving operational efficiency.
- Explosion-proof Certification: Meets the global explosion-proof standards required in all countries, ensuring safe operation in hazardous environments.

DIMENSION

Product Specifications

Model Name	SP-SGT
Sensor Type	Electrochemical
Detection Method	Diffusion Type
Enclosure Material	Rubberized Enclosure for enhanced durability
Dimensions	54(W) x 91(H) x 32(D) mm
Weight	93g (Toxic Gas Version), 104g (O₂ Version) *Includes battery and clip
Operating Temperature Range	Toxic Gas: -40°C to +50°C O₂: -35°C to +50°C
Operating Humidity	5% to 95% RH (Non-condensing)
Service Life	24 months (Disposable)
Data Logging	Stores up to 30 event logs for historical tracking
Ingress Protection	IP67 – Fully dustproof and waterproof (up to 1 meter for 30 minutes)
Alarms	Visual: LED indicator Vibration: Alerts with vibration Audible: High-pitched buzzer for immediate warning
Display	LCD display for clear real-time readings
Battery	Type: Primary Lithium Battery Rated Voltage/Capacity: 3.6V / 1.2Ah
Components	Calibration Cap, Manual, Calibration and Test Certificate
IR-Link	For seamless data management and easy configuration
Warranty	2 years from the date of purchase

Sensor Specifications

SP-SGT is available for the following gases:
• Oxygen (O₂)
• Carbon Monoxide (CO)
• Hydrogen Sulfide (H₂S)
• Hydrogen (H₂)
• Sulfur Dioxide (SO₂)
• Ammonia (NH₃)
• Nitrogen Dioxide (NO₂)

These gases are supported with highly reliable electrochemical sensors, providing continuous, real-time protection over a 2-year service life, with no need for battery or sensor replacement.

Gas	Sensor Type	Measuring Range	Low Alarm	High Alarm
Oxygen (O₂)	Electrochemical	0 ~ 30% Vol	19% Vol	23% Vol
Carbon Monoxide (CO)	Electrochemical	0 ~ 500/1000 ppm	30 ppm	60 ppm
Hydrogen Sulfide (H₂S)	Electrochemical	0 ~ 100/200 ppm	10 ppm	15 ppm
Hydrogen (H₂)	Electrochemical	0 ~ 1,000 ppm	100 ppm	500 ppm
Sulfur Dioxide (SO₂)	Electrochemical	0 ~ 50 ppm	2 ppm	5 ppm
Ammonia (NH₃)	Electrochemical	0 ~ 100 ppm	25 ppm	35 ppm
Nitrogen Dioxide (NO₂)	Electrochemical	0 ~ 20 ppm	3 ppm	5 ppm
